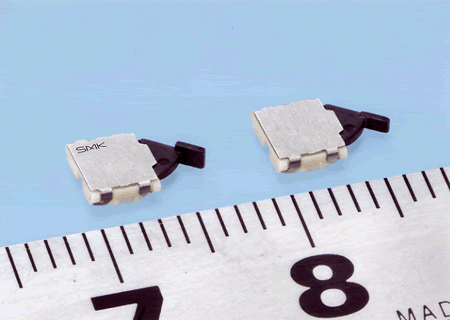

DSI-III detector switch developed
We are pleased to announce the development and the commencement of shipment of samples of a DSI series detector switch, DSI-III, which features improved operability. Specifics of this switch are outlined below.
A recent years' trend for detector switches calls for better operability and a structure around which designing equipment is simpler and easier, as equipment such as mobile phones, digital cameras and portable digital equipment has become increasingly smaller.
The development of this DSI-III is our way to respond to such market needs.
This new product has a larger (400% of DSI-II in volume) operation lever being only 1.0 mm thick, equal to that of DSI-II, to ease designing of associated parts. Also, the extended on-stroke distance to 2 mm (200% of DSI-II) helps improve end users' tactile feedback.
Furthermore, a variety of 8 options in all are available in terms of the lever width of standard and wider, terminal configuration of J and L, and availability of the boss.
Our plan calls for proactive product development and provision of new products for the small equipment market.
|Date Released||May 23, 2007|
|Press Release No.||785fc|
|Product Name||Detector switch, DSI-III|
|Major specifications||Rating||10mA, 5V DC (all types)|
|Circuit||Push on (all types)|
|Operation Force||0.35N (all types)|
|On Stroke||2.0mm (all types)|
|Full Stroke||2.5mm (all types)|
|Lever Action Direction||Right (all types)|
|Lever Width||0.65mm (standard type) or 1.15mm(wide type)|
|Operating Life||50,000 cycles (all types)|
|External Dimensions||4.6mm(W) X 3.7mm(D) X 1.0mm(H) (all types)|
|Applications||Mobile phones, digital cameras, digital portable audio equipment, and other portable equipment|
|Sample Shipment||May, 2007|
|Production capacity||500,000 units/month in July, 2007|
|Inquiry||* Please contact FC Division for further information|
Fax : 81-3-3788-7166
