RF (wireless) module best suited for remote control applications
We are pleased to announce the development and the commencement of shipment of samples of an RF (wireless) module, which is a “2.4 GHz ISM band RF module with a built-in antenna”, best suited for remote control applications, specifics of which are outline below.
As larger living spaces and flat-screen TVs are becoming popular, wider directional angles are required of remote controls for AV equipment. In addition, extended acceptance of terrestrial digital broadcasting has increased chances for inputting text commands and touch-pad input, and subsequently, faster response is sought for stress-free operations. Furthermore, required are interactive transmission to enable EPG via a remote control and extension of battery life for energy conservation.
The development of this “2.4 GHz ISM band RF module with a built-in antenna” is our response to such requirements.
This new product provides faster response by being compatible with a UART interface while omni-directionality is realized taking the advantage of the RF's characteristics.
Compatibility with EPG with a remote control is possible via interactive communication using transceivers. Electrical power conservation measures are implemented by transmission featuring a stand-by mode and by intermittent reception.
We will continue to supply user-friendly remote controls by addition of RF system products to our previous optical system products and further extend our remote control line
|Date Released||Aug. 7, 2007|
|Press Release No.||793fc|

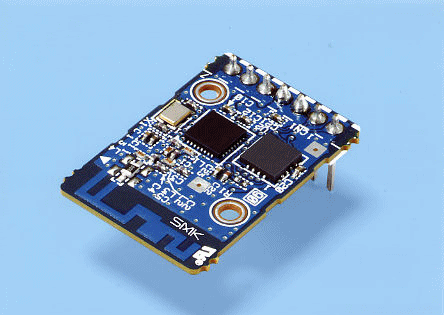

|Product Name||2.4 GHz ISM band RF module with a built-in antenna Abbreviated as RF module for remote controls (FC 8602T)|
*RF: Radio Frequency
*ISM: Industrial Scientific Medical
*UART: Universal Asynchronous Receiver Transmitter
*EPG: Electronic Programming Guide
*DSSS: Direct Sequence Spread Spectrum
*FCC: Federal Communications Commission
*CE: Came from the EU's Latin expression. In French, an acronym of
*PWM: Pulse Width Modulation
|Major specifications||Supply Voltage||2.1 - 3.4V DC|
|Operating Temperature Range||-10°C to +50°C|
|Interface||UART 19200bps and PWM (IR decoder data)|
|External Dimensions||20mm X 30mm X 5mm|
|Frequency Range||2400 - 2483.5 MHz|
|Transmission Distance||20m min.(reference only)|
|Applications||Remote controls for various type of electrical/electronic goods (*) |
* Various type of electrical goods: LCD-TVs, AV equipment including PDP and audio products, home automation equipment, home security devices, hot water supplies, light fixtures, air conditioners, PCs, etc.
|Sample Shipment||Sept., 2007|
|Production capacity||1,000,000 units/month in Dec., 2007|
|Inquiry||* Please contact FC Division for further information :|
Fax : 81-3-3788-7166
