A contributor for designing thinner equipment
10P (poles) interface connector receptacle
CR-10 series (mid-mounting type) marketed

We are pleased to announce that we have developed and commenced marketing of a 10P (poles) interface connector receptacle, CR-10 series (mid-mounting type). This new product is a low-profile version of the CR-10 series and the CR-10 (short type) which are compatible with the requirements of JEITA RC-5240 standard, Rectangular Connector for Mobile Phone, and which have been successfully marketed for some time by now. Specifics of this new product are given below.

The thinner and smaller cellular phones are designed, the lower in profile and smaller their components are required to be.

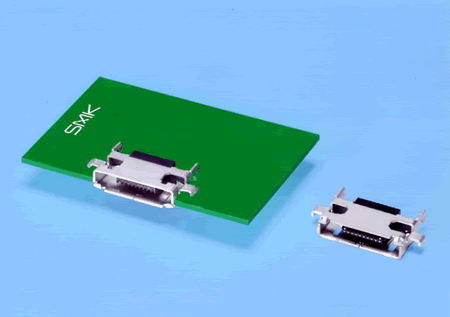

Employment of a mid-mounting system (to rest in a recess provided on a PCB) has realized a lower profile on a PCB. With its height above a PCB surface being only 1.0 mm [about a 63% reduction when compared to our CR-10 series products (on-board type)], the space occupancy will be reduced for thinner and smaller equipment design. One-piece molding provides sufficient strength against a skew insertion force.

This product model is available in 2 types, a standard type (contacts at the lower side) and reverse type (contacts at the upper side). We will continue to optimize our product repertoire to better serve the market.

Date Released Sep. 13, 2007
Press Release No. 795cs
Product Name 10P(pole) interface connector receptacle, CR-10 series (mid-mounting type)
Drawing Nos. Standard Type : CSS5010-1LXXF
Reverse Type  : CSS5010-1KXXF
  • 1) A 0.5 mm-spacing interface connector
  • 2) Compatible with JEITA standard, RC-5240, Rectangular Connector for Mobile Phone
  • 3) Of a mid-mounting system (to rest in a recess on a PCB) for thinner equipment design possibilities. Only 1.0 mm high above a PCB surface
  • 4) A half-locking system for joining
  • 5) Available in 2 types, a standard type (contacts at the lower side) and reverse type (contacts at the upper side)
  • 6) Ensured strength against skew insertion due to robust shell structure and one-piece molding of the contacts and housing
  • 7) RoHS Directive compliant.
Major specifications Rating 0.3A, 50V AC/DC
Contact Resistance 50m Ω max.
Insulation Resistance 100M Ω min. at 250V DC
Withstanding Voltage 250V AC for one minute
Operating Temperature Range -40 °C to + 85 °C
Operating Life 10,000 cycles
Applications Mobile phones
Market Introduction Sep., 2007
Production capacity 1,000,000 units/month
Inquiry * Please contact CS Division for further information :
  Fax : 81-3-3785-0517
