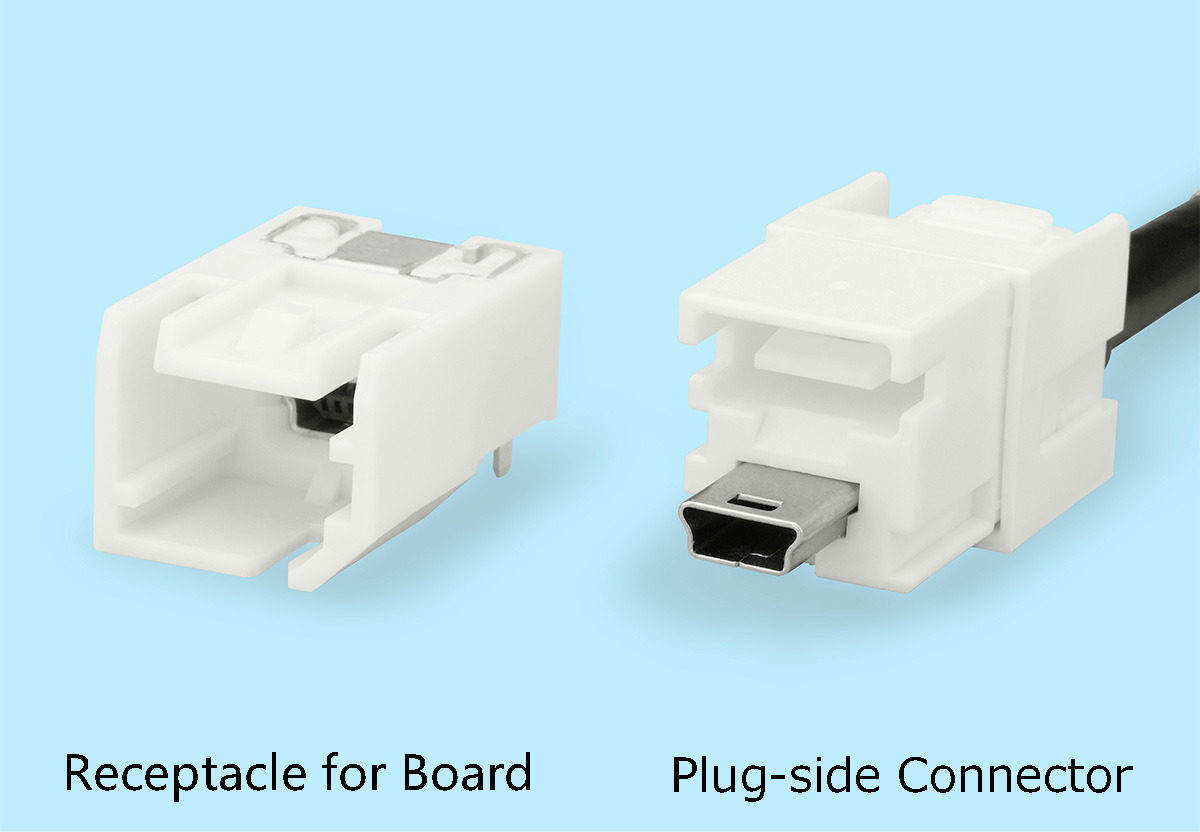

(Click to enlarge image)

SMK Develops USCAR-30-compliant 5Pin Connector
for Automotive

   SMK has developed a new interface connector, 5 pins plug-side connector compliant with USCAR-30 Standard, which is suitable to transfer USB2.0 signals between automotive devices such as car navigation equipment.
   It incorporates SMK’s unique structure that allows easy cable assembly.
   SMK has already been selling USCAR-30-compliant receptacle for board. By expanding the variant of the USCAR-30 connectors with the newly developed plug-side connector, SMK intends to make a wide range of proposals on connection as a whole.

Infotainment systems such as in-vehicle infotainment, display audio,
car navigation equipment, etc.

Published Date June 26th, 2018
Press Release Number 1102CS
Product Name USCAR-30 Standard Compliant 5Pin Connector

1) USCAR-30 compliant.
2) USB2.0 compliant.
3) Incorporates SMK’s unique structure that enables easy assembly.
4) RoHS compliant.

Major Specifications

Rating 1.5A, 5V (RMS) DC
Contact Resistance 50mΩ maximum
Insulation Resistance 100V DC, after one minute, 100MΩ minimum
Withstanding Voltage 100V AC, 1 minute (No arc or dielectric breakdown)
Operating Temperature Range -40℃ to +85℃
Standard USCAR-30
External Dimensions Width: 14.8mm
Depth (with bush): 42.2mm
Height: 15.4mm
Operating Life 10 cycles
Release Date October, 2018
Production Capacity 100,000 units per month
Sample Price 2,000 yen per unit
File Download
You can check the PDF File of Press Release

Inquiry For more information, please contact the CS Division.
