CPL1105-1602F
CPL-2.2

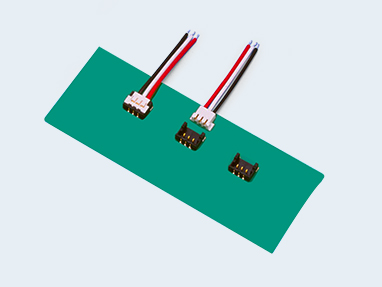

1.2mm Pitch Board to Wire Crimping Connectors
RoHS Compliant
Specification
| Features | 1.嵌合高さ2.2mm、1.2mm ピッチ、小型・低背タイプの基板対電線圧着コネクタです。 2.レセプタクルとプラグの嵌合は、上方向からコネクタを挿入するトップエントリー嵌合で作業性を考慮し、電線引き出しは横方向です。 3. レセプタクルとプラグの接点は、プラグコンタクトを両面で挟み込む構造とし、振動やこじり、微摺動に対し安定した接触状態を保持します。 4. バネ性をもったハウジングランス構造採用により、ターミナル挿入が容易で確実な装着が可能です。 5. プラグは自動実装対応でエンボステーピング方式による供給です。 |
|---|---|
| Application | Tablet PC, PC, Mobile devices, Home appliance, Industrial Equipment, Medical equipment |
| Plug/Receptacle/Terminal | Receptacle |
| Pitch | 1.2mm |
| Number of Pins | 5 |
| Connection Method | Crimp |
| Applicable Electrical Wire | AWG28 to 26 |
| Dimention | Length: 7.8mm Width: 3.45mm Height: 1.95mm |
| Mating Height | 2.2mm |
| Mounting Style | － |
| Mounting Direction | － |
| Rated Voltage AC/DC | 30V AC/DC, 2A |
| Contact Resistance | (Initial)20mΩ Max. |
| Insulation Resistance | DC 500V 1000MΩ Min. |
| Withstanding Voltage | AC 500V (for one minute) |
| Operating Temperature Range | -25℃ to +85℃ |
| Packaging | Bulk |
Material and Plating
| Harness Side Housing | Thermoplastic Resin |
|---|---|
| Harness Side Terminal | － |
