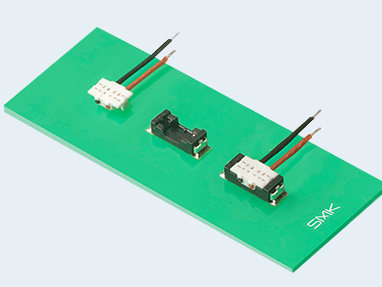

ID-01
2P Board to Wire ID Method Connectors
Features
1. A low-profile 2P wire-to-board connector of 1.0mm pitch and mating height of 1.2 mm.
2. Resistant to vibration and shocks when dropped and highly reliable due to a 2-point contact structure.
3. Excellent cable retention performance and contact reliability due to double pressureconnected cables at anteroposterior positions.
4. Excellent in addition to ensured positive clicking feeling during insertion or withdrawal due to the locking structure.
5. A reverse insertion prevention design.
Specification
- Pitch
- 1.0mm
- Number of Pins
- 2
- Connection Method
- Insulation displacement
- Applicable Electrical Wire
- AWG32
- Mating Height
- 1.2mm
- Mounting Style
- SMT
- Mounting Direction
- Straight
- Rated Voltage AC/DC
- 30V AC/DC, 1A
- Contact Resistance
- 20mΩ max.
- Insulation Resistance
- 100MΩmin. at 250V DC
- Withstanding Voltage
- 250V AC (for one minute)
- Operating Temperature Range
- －30℃ to ＋80℃
Material and Plating
- PCB Side Housing
- Thermoplastic Resin
- PCB Side Contact
- Cu Alloy, Sn Plating (Reflow Treatment）
- Harness Side Housing
- Thermoplastic Resin
- Harness Side Terminal
- Cu Alloy, Sn Plating
Application
Smartphones, Tablet, PC, Wearables, Mobile devices , Home appliances
