CM-X

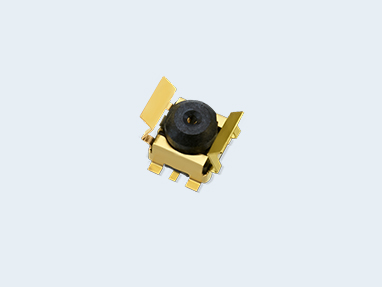

Coaxial Connectors for Automotive Camera Module (X･Y･Z Floating Type)
RoHS Compliant
Features
1. This is a connector for high pixel type automotive camera modules.
2. Covers a wide operating frequency range from DC to 4GHz, and achieves excellent high frequency performance.
3. Floating amount：X＝±0.5mm, Y=±0.5mm, Z＝±0.5mm
4. Country of Origin：China
Specification
- Type
- External Connector for Automotive device
- Frequency Range
- DC to 4GHz
- Nominal Impedance
- 50Ω
- V.S.W.R.
- 1.3max.(DC to 4GHz)
- Insertion Loss
- 0.4dBmax.(DC to 4GHz)
- Mounting Height
- 3.9mm
- Waterproof / Non-waterproof
- Non-waterproof
- Mounting Direction
- Straight
- Rated Voltage AC/DC
- 50V AC/DC, 0.5A
- Contact Resistance
- 20mΩ max.
- Operating Temperature Range
- -40℃ to +105℃
Material and Plating
- Terminal
- Cu Alloy, Au Plating
Application
Automotive Camera
