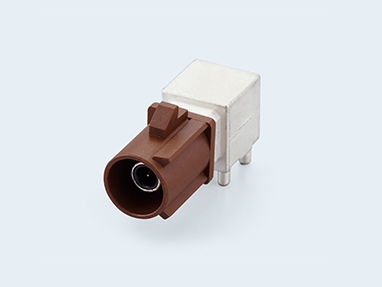

CRC5001-7001F

VC-2
Coaxial FAKRA Connectors

RoHS Compliant

Specification

Features

1. Complete connection is ensured by the push-on mold locking structure.
2. Key codes are available in different colors for different connection.
3. Complies with ISO20860-1,ISO20860-2,DIN72594-1,DIN72594-2,SAE/USCAR-17, and SAE/USCAR-18.
4. Waterproof type is also available (mating waterproof of IPX7).
  Plug for PCB:CRC5001-74XXF
  Cable Plug:CRC1001-57XXF
  Cable Jack:CRS9001-45XXF, CRS9001-38XXF, CRS9001-46XXF, CZF2100-02XXF, CZF2100-03XXF, CZF2100-13XXF
5. Cable Jack : Multiple cable pull-out directions are available.
  CRS9001-46XXF, CZF2100-02XXF, CZF2100-03XXF, CZF2100-13XXF
6. Reduces the piece part numbers and contributes to improving assembly workability.
7. Country of Origin:China


・Part No. XX:Differs by key codes and colors. Please contact us for more information.
・The CAD data part numbers are listed at the end 01F.

Application
Automotive Equipment, Industrial Equipment
Type
External Connector for Automotive device
Plug/Receptacle
Board Plug
Frequency Range
DC to 4GHz
Nominal Impedance
50Ω
V.S.W.R.
1.3 max. (DC to 2GHz), 1.5 max. (2 to 4GHz)
Insertion Loss
0.3dB max. (DC to 3GHz), 0.35dB max. (3 to 4GHz)
Dimention
Length: 21.1mm Width: 8.0mm Height: 13.2mm
Mounting Height
10.55mm
Waterproof / Non-waterproof
Non-waterproof
Mounting Style
DIP (Flow)
Mounting Direction
Right angle
Applicable Cable
Rated Voltage AC/DC
60V AC/DC, 1A
Contact Resistance
15mΩ Max. (center contact), 5mΩ Max. (external contact)
Operating Temperature Range
-40℃ to +105℃
Mating Cycle Life
30 cycles
Packaging
Tray

Material and Plating

Housing
Thermoplastic Resin
Terminal
Cu Alloy, Au Plating

VC-2 Product List

--Result(s)

Parts No.
