JLS1300-0801
JLSsmall

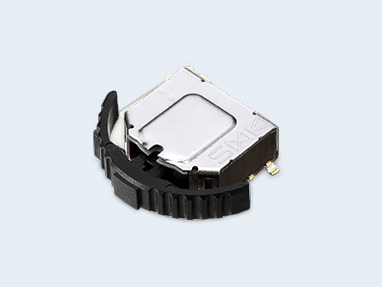

Lever Push Switches (small type)
RoHS Compliant
Specification
| Features | 1. One unit of this switch is sufficient for both function selection and entry of the selected function. 2. J-Lead type terminals located on the side of the body of the horizontal type help downsize equipment. 3. Two options of a keytop-inclusion type and cap type are available. 4. A long life of 1,000,000 cycles is also available. 5. Country of origin : China |
|---|---|
| Application | Mobile Phone, DSC, DVC, Portable audio etc. |
| Operating Force | 4.8N |
| Circuit | SPST |
| Dimention | 3mm(W) × 3.5mm(D) × 1.85mm(H) |
| Rated Voltage AC/DC | DC12V 50mA |
| Durability | 200,000cycle |
No applicable products
JLSsmall Product List
--Result(s)
| Parts No. |
|
|
|
|
|---|---|---|---|---|
| ${item.field_sado_ryoku} | ${item.field_kairo} | ${item.field_teikaku_denatsu_denryu} | ${item.field_dousa_jyumyo} | |
