JLS1300-1412F
JLSsmall

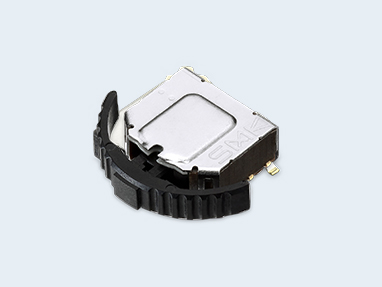

Lever Push Switches (small type)
RoHS Compliant
Specification
| Features | 1. One unit of this switch is sufficient for both function selection and entry of the selected function. 2. J-Lead type terminals located on the side of the body of the horizontal type help downsize equipment. 3. Two options of a keytop-inclusion type and cap type are available. 4. A long life of 1,000,000 cycles is also available. 5. Country of origin : China |
|---|---|
| Application | Car audio, Digital Still Camera, Portable audio, PC, PC Peripheral Equipment, TV, DVD Player, Industrial Equipment, Office machine, Home appliance products, Healthcare Products |
| Operating Force | Rotation 1.4N, Push 2.5N |
| Travel | Rotation（Full）18°, Push Direction（Full）0.8mm |
| Circuit | Push SPST, Rotation SPDT |
| Dimention | 10.5mm(W) × 8.5mm(D) × 3.5mm(H) |
| Rated Voltage AC/DC | 5V DC, 10mA |
| Durability | 100,000 cycles |
No applicable products
JLSsmall Product List
--Result(s)
| Parts No. |
|
|
|
|
||
|---|---|---|---|---|---|---|
| ${item.field_sado_ryoku} | ${item.field_kairo} | ${item.field_teikaku_denatsu_denryu} | ${item.field_dousa_jyumyo} | |||
