JPM1040-0913F

JPM(LSP)

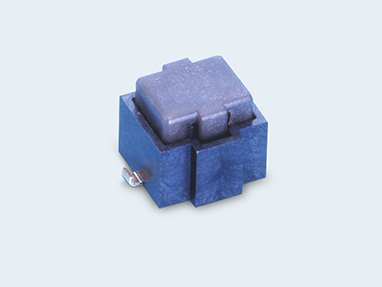

Rubber Push Switches

RoHS Compliant

Features	1. Lower contact resistance is made possible by metal contact structure. 2. High operation force, long stroke and sure indexing feedback help prevent incomplete operation. 3. External dimensions of only 5.7mm X 6.0mm is a definite contributing element to high density mounting. 4. Country of origin : China(-XX13F, -XX14F), Japan(-XX11F)
Application	Automobiles, Motorcycle, Car audio, PC, PC Peripherals, TV, DVD Player, Industrial Equipment, Office machine, Home appliance products, Healthcare Products
With/Without Ground Terminal	Without
Operating Force	3.5N
Travel	1.3mm
Circuit	SPST
Dimention	5.7mm(W) ×6.0mm(D) ×5.0mm(H)
Operating Temperature Range	-40℃ to +90'℃
Installation Method	PWB mounting
Rated Voltage AC/DC	16V DC, 50mA
Storage temperature range	-40℃ to +90℃

--Result(s)

Parts No.	Operating Force	Circuit	Rated Voltage AC/DC	Durability

${item.title}	${item.field_sado_ryoku}	${item.field_kairo}	${item.field_teikaku_denatsu_denryu}	${item.field_dousa_jyumyo}
