JPM1990-6611F

JPM(THP-MM)

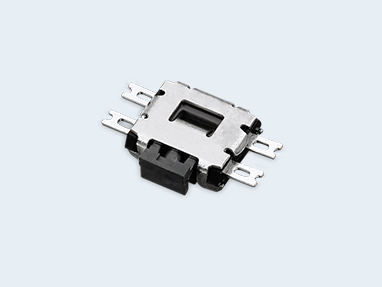

Thin Type Horizontal Push Switches (Middle Mount)

RoHS Compliant

Features	1. Low profile of 1.2mm height. 2. Contributes to smaller and thinner equipments by realizing the height of 0.7mm from PWB by edge mount design. 3. Operating force can be selected from 2.2N and 1.6N. 4. Country of origin : China
Application	Mobile Phone, Smartphone, Digital Still Cameras, Car audio, Portable audio, PC, PC Peripherals, TV, DVD Player, Industrial Equipment, Office machine, Home appliance products, Healthcare Products
With/Without Ground Terminal	Without
Operating Force	1.6N
Travel	0.25mm
Circuit	SPST
Dimention	5.1mm(W) × 3.0mm(D) × 1.2mm(H)
Operating Temperature Range	-30 to +70℃
Installation Method	PWB mounting
Rated Voltage AC/DC	12V DC, 50mA

--Result(s)

Parts No.	Operating Force	Circuit	Rated Voltage AC/DC	Durability

${item.title}	${item.field_sado_ryoku}	${item.field_kairo}	${item.field_teikaku_denatsu_denryu}	${item.field_dousa_jyumyo}
