SCPS (Self-Conteined Power Supply) LoRaWAN^® -Compatible Tracker

• Use Cases
• Features
• Product Examples
• Related products

Developed by SMK, this is a LoRaWAN^®-compatible tracker with a self-contained power supply. The tracker utilizes energy harvesting technology and is equipped with PV cells and a rechargeable battery. Additionally, it features receivers for LoRaWAN^®, GNSS, and Wi-Fi^®, allowing for location tracking both indoors and outdoors. For outdoor use, it is designed with weather resistance and waterproofing (IPX7) and can operate even in harsh environments.

Use Cases

Pets & Livestock

The device can be attached pet or livestock collars, enabling real-time monitoring of their location and movement even from a distance. It allows monitoring of livestock's location and movement to understand their behavior patterns and health status.

Asset Tracking

This tracker is designed for monitoring the location and condition of assets such as vehicles, equipment, and tools. By attaching the SCPS LoRaWAN^®-compatible Tracker to the target, you can monitor not only its location and movement but also speed, temperature, and humidity.

Vehicle Tracking

The tracker is ideal for real-time tracking of vehicle locations, improving the efficiency of logistics and delivery operations.

Hazard Detection

By installing the tracker on cliffs or slopes where landslides or rockfalls may occur, it can detect movement of rocks or slopes early and issue warnings before disasters happen. This contributes to improved safety for infrastructure, construction sites, and mining operations.

Features

• Waterproof (IPX7)
• Thin and compact design (φ66mm / thickness 8.7mm)
• Hybrid PV cell enables power generation in low-light conditions both outdoors and indoors
• Equipped with GNSS/Wi-Fi^® and allows tracking both indoors and outdoors (position accuracy ±9m)
• Wireless communication (Bluetooth^® Low Energy) allows you to easily change parameters
• Low power consumption for long-term operation: Operates for 6 days on a full charge sending location data 24 times/day
• High charging efficiency for long-term operation: Fully charges in 2.5 hours under outdoor lighting conditions of 50k lux
• Scheduled to be compatible with Japan, North America, and Europe

Product Examples

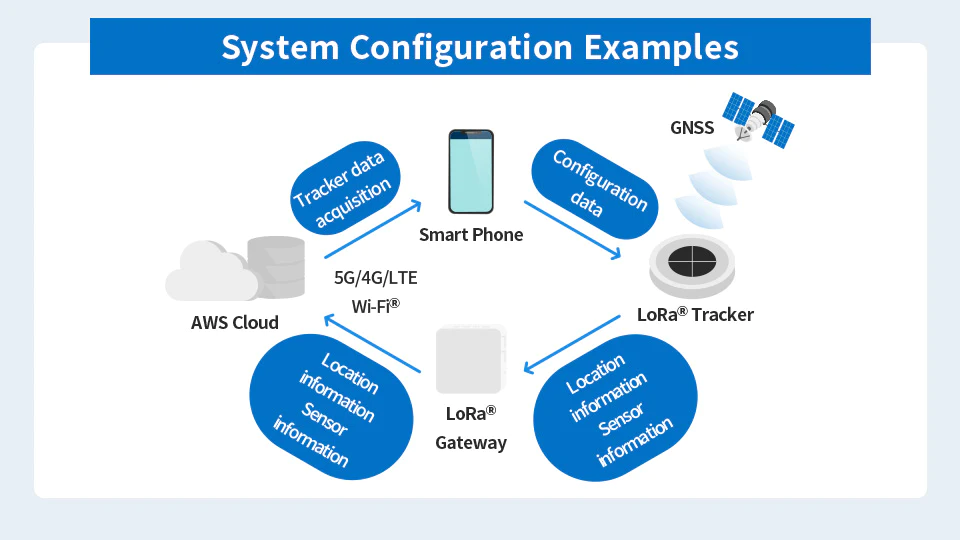

System Configuration Examples

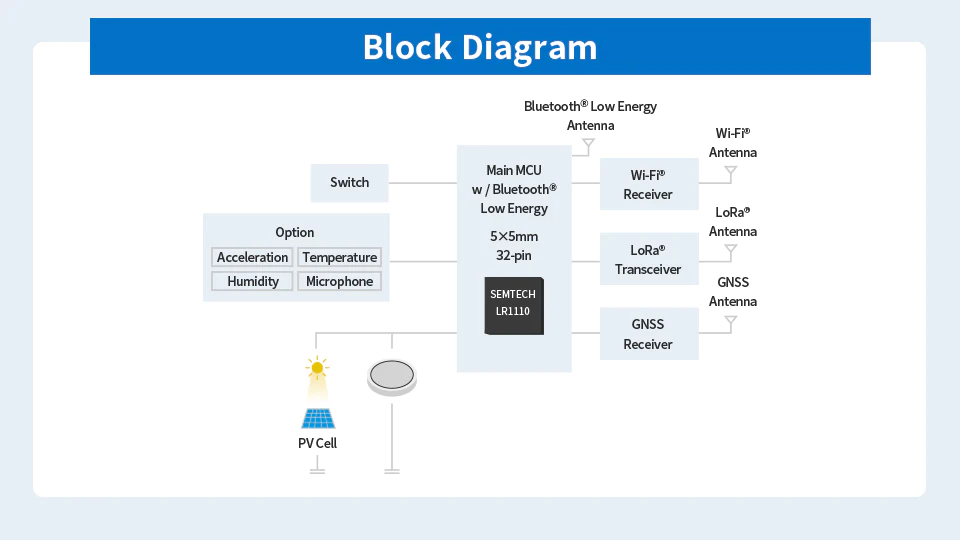

Block Diagram
