Custom Connector Development Process: Supplier Selection Criteria, Development Workflow, and Enabling Technologies
Table of Contents
1. Do You have Any Problems With Standard Connectors?

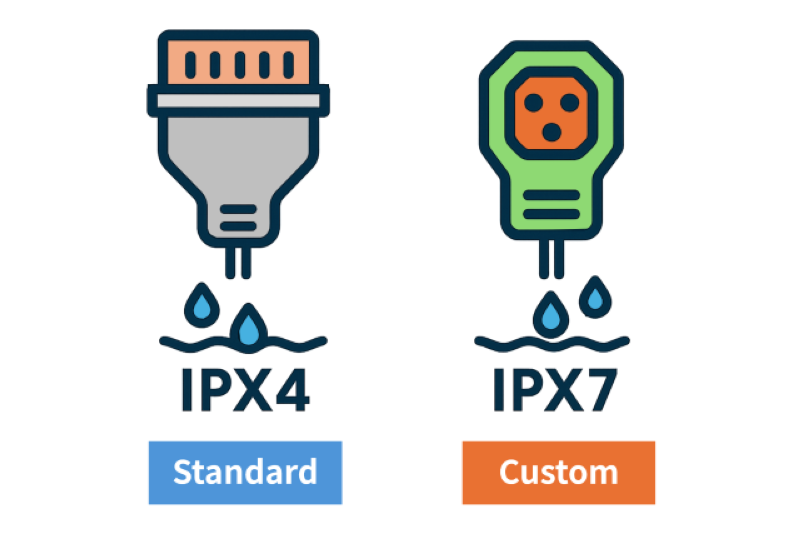

Standard connectors don’t always cover every requirement. Unique shape, custom pin assignments, high-current capacity, or environmental resistance to water, dust, vibration, and heat—these needs go beyond what standard products can offer.
Custom connectors offer an effective solution. The typical development process is:
“Inquiry → Requirement Definition → Design → Quotation → Prototyping → Mass Production and Delivery.”
Yet many engineers and procurement teams are unsure how to evaluate a development partner or what technical expertise each stage requires.
This article explains the key criteria for selecting a custom connector development partner, the overall development process, and the technical expertise required at each stage.
2. What Are Custom Connectors? Key Differences and Benefits
Custom connectors are connection components optimized for the electrical and mechanical specifications of the equipment. When standard products cannot address specific requirements—such as shape, pin count, or environmental resistance—custom connectors deliver the right solution.
There are two primary approaches:
- Modifying a standard product based on an existing design (cost-effective and typically shorter lead time)
- Developing a fully custom design from scratch (greater design flexibility and suitability for specialized requirements)
The key benefits of custom connector development include:
- Optimized performance and reliability through a design tailored to the equipment (including shape, pin count, terminal structure, locking mechanism, and mis-mating prevention)
- Enhanced application-specific safety, such as prevention of incorrect mating and improved vibration resistance
3. Six Criteria for Choosing a Development Partner
When selecting a partner for custom connector development and manufacturing, the most important factors for companies are proven technical capabilities and flexible support.
Technical Capability
- Supports special specifications (waterproofing, heat, vibration)?
- Proven experience in custom design?
Prototyping & Volume
- Supports prototyping through mass production?
- Is the MOQ realistic?
Lead Time & Flexibility
- Prototyping lead time?
- Flexible to design changes?
Communication
- Smooth technical communication?
- Adequate support (including international projects)?
Cost
- Clear tooling and initial costs?
- Any additional costs explained upfront?
Quality Assurance
- ISO certifications and quality systems in place?
- Reliable testing and inspection capability?
As a custom connector development and manufacturing partner, SMK has completed numerous projects spanning seamless prototyping-to-mass-production transitions, internationally certified quality assurance, and cost-optimized designs tailored to industry requirements.
Also, SMK can provide added value that other companies cannot cover through rapid problem-solving via direct communication with engineers and the ability to handle special specifications.
4. Development Process and Technical Capabilities

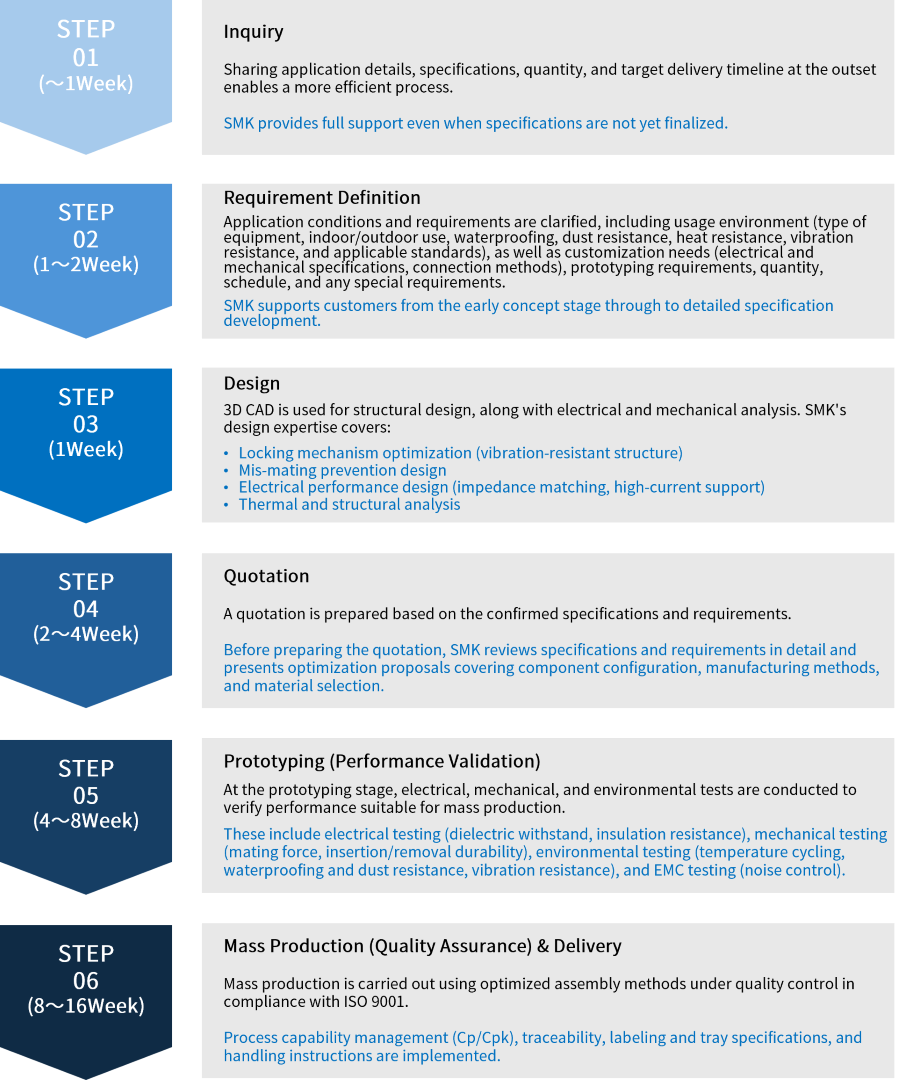

This section outlines the general development process for custom connectors and the key activities at each stage.
In practice, the process, sequence, and schedule may vary depending on product specifications and requirements. The timeframes and steps presented here are provided as a general reference.
We support the following technologies and evaluation environments in our product development.
3D Modeling
FEM Analysis
EMC Analysis
Testing Facilities
Visual Inspection
5. SMK's Strengths Across Industries
Custom connector development requires specialized expertise and technologies that vary by industry. Challenges differ widely across applications—for example, vibration and heat resistance in the automotive industry, high precision and safety in medical devices, high-speed transmission and miniaturization in communication and IoT applications, and waterproofing, dust resistance, and long-term durability in industrial equipment.
SMK has built extensive experience across these markets. This includes compliance with automotive standards and medical certifications, high-speed transmission design for 5G and IoT applications, and waterproof and dustproof structures for harsh environments. Based on this accumulated experience, along with strong technical capabilities and a robust quality assurance system,SMK is selected by customers as the worldwide development partner.
Automotive Industry
In the automotive sector, designs must withstand harsh conditions such as vibration and high temperatures. In addition to vibration- and heat-resistant design, SMK supports high-current applications for EVs and conducts rigorous testing processes compliant with automotive standards.
This enables the integration of locking mechanisms that prevent disconnection during vehicle operation, shielded structures that minimize noise and maintain communication quality, and harness connection designs that improve assembly efficiency.
As a result, both safety and work efficiency required in the field are achieved.
Environmental Resistance and Long-Term Reliability
Communication/IoT
In communication equipment and IoT devices, high-speed signal transmission and space-efficient design are critical. SMK has design capabilities compatible with the latest communication standards, including 5G.
By optimizing the internal connector structure to ensure accurate signal transmission and designing to minimize noise, SMK enhances communication performance.
In addition, by applying signal optimization technologies, SMK achieves highly reliable communication environments.
High-Speed Transmission and Miniaturization
Industrial Equipment
In factory and outdoor environments, structures must withstand dust, water, and mechanical impact. SMK connectors provide waterproof and dustproof performance equivalent to IP standards, along with high durability with metal shell structures, ensuring stable connection reliability even under harsh conditions.
In addition, design features that improve maintenance efficiency during tool-based operations and enable quick replacement on-site help minimize system downtime.
Waterproofing, Dust Resistance, and Durability
6. FAQ (Frequently Asked Questions on Custom Connector Development)
Q.What is the minimum order quantity (MOQ)?
A.Minimum order quantities vary significantly based on specifications, materials, and manufacturing conditions, so no fixed MOQ is set. Please contact us with your requirements—we will review them and respond accordingly.
Q.Can I consult without drawings or 3D data?
A.Yes. Our team guides you through the full process—from initial requirement discussions to specification definition and drawing creation.
Q.How is quality ensured?
A.SMK is certified to IATF16949 and ISO9001. We can provide test plans and inspection reports as required to verify product reliability. In mass production, stable quality is ensured through process capability verification, in-process inspections, and final inspections.
→ For more information, please refer to the certification page.
Q.Do you support overseas production and delivery?
A.Yes. Global supply is available through our overseas locations and partner network.
→ For more information, please refer to SMK's Global Network page.
Q.Are simulation and evaluation tests available?
A.Yes. Electrical analysis, durability testing, waterproof testing, and other evaluations are conducted as required.
Q.Do you comply with environmental regulations (RoHS, REACH, etc.)?
A.Yes. SMK supports material selection in compliance with environmental regulations and can provide relevant certifications.
→ For more information, please refer to the certification page.
