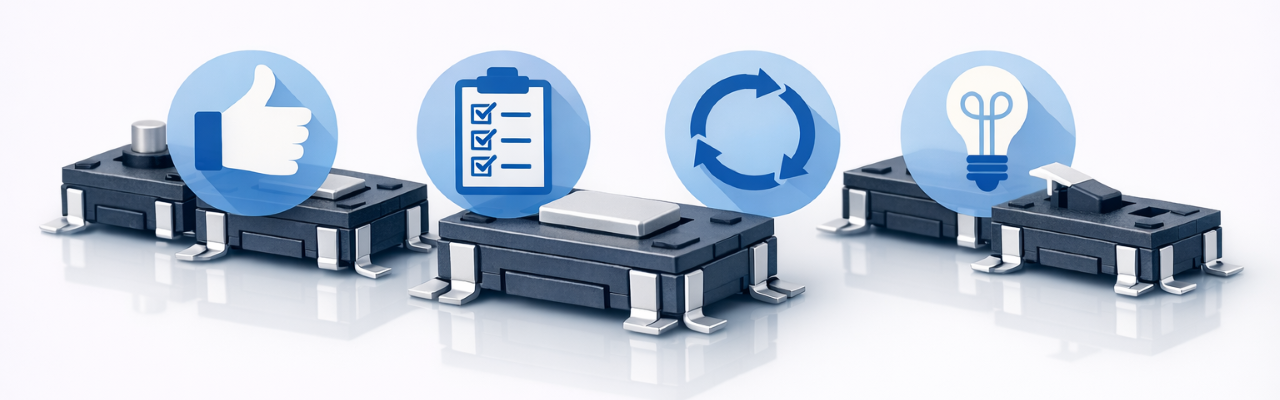

Custom Switch Development ProcessSupporting every stage from requirements definition to prototyping and mass production with engineering expertise

1.Do you have any challenges with standard switches?

Standard switches do not always cover every requirement.

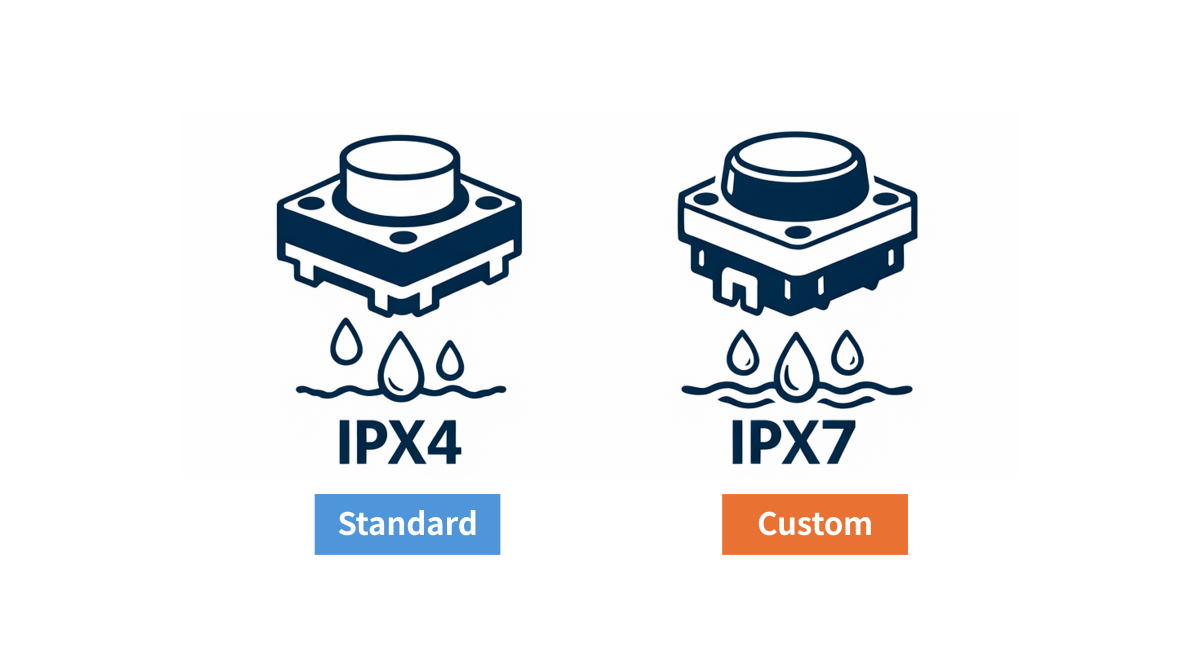

many cases, requirements extend beyond standard products—such as precise control of operating feel (click Feeling and actuation force),sizes, custom contact structures and wiring specifications, and enhanced environmental performance requirements, including water and dust protection, vibration resistance, and high-temperature durability.


In such situations, custom switches offer an effective solution.The typical development process follows:“Inquiry → Requirement Definition → Design → Quotation → Prototyping → Mass Production and Delivery.”

However, many engineers and procurement teams are unsure how to evaluate the right manufacturing partner or what technical expertise is required at each stage.

This article explains the key criteria for selecting a custom switch development partner, the overall development process, and the technical capabilities required at each stage.


2.What Is Custom Switch Development? Key Differences and Benefits

Custom switches are operating components designed and optimized for specific equipment, including operating characteristics, electrical performance, and usage environment.
When standard switches cannot satisfy requirements—such as operating feel, size, structure, or environmental resistance—custom development becomes an effective option.
There are two primary approaches:

1. Modifying a standard product based on an existing design(cost-effective and typically shorter lead time)
2. Developing a fully custom design from scratch(greater design flexibility and suitability for specialized requirements)

The key benefits of custom switch development include:

• Optimized operability and reliability through a design tailored to the equipment(including actuation force, click feel, stroke, size, terminal structure, and mounting method)
• Enhanced application-specific safety and durability(such as prevention of operating errors, vibration resistance, waterproofing, dust resistance, and heat resistance)

3.Six Criteria for Choosing a Development and Partner

When selecting a partner for custom switch development and manufacturing, the most important factors are proven technical capabilities and flexible support.


• Technical Capability

  • Supports special specifications such as waterproofing, heat resistance, and vibration resistance?
  • Proven experience in custom design, including operating feel and structure?

• Prototyping & Volume

  • Supports prototyping through mass production?
  • Is the MOQ realistic for the development?

• Lead Time & Flexibility

  • Prototyping lead time?
  • Flexible with design changes and specification updates?

• Communication

  • Smooth technical communication?
  • Adequate support for international?

• Cost

  • Clear tooling and initial costs?
  • Any additional costs explained upfront?

• Quality Assurance

  • ISO certifications and quality systems in place?
  • Reliable testing and evaluation capability?

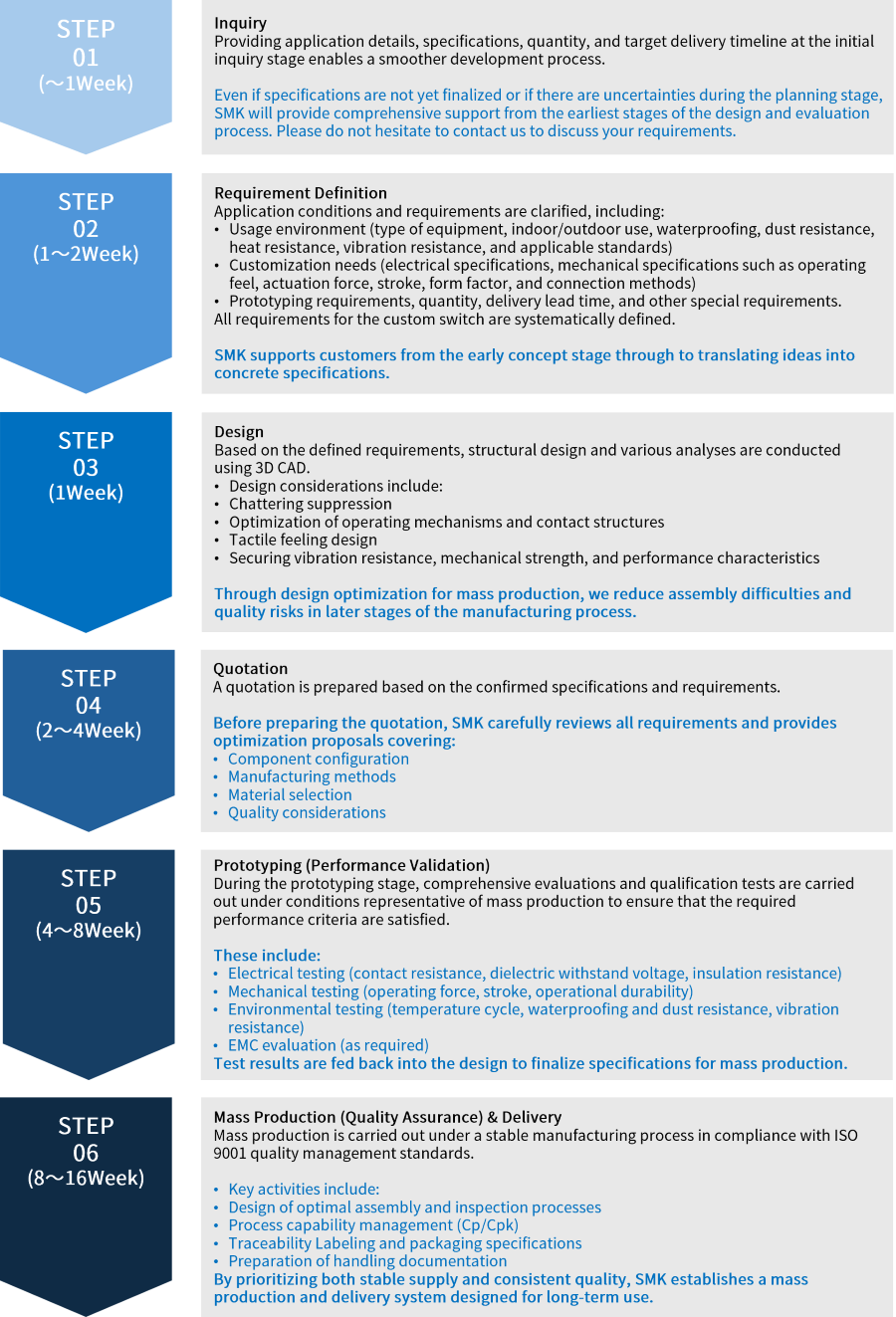

4.Development Process and Technical Capabilities

This section outlines the general development process for custom switches and the key activities at each stage. In practice, the process, sequence, and schedule may vary depending on product specifications and requirements. The timeframes and steps presented here are provided as a general reference.

• STEP1：お問い合わせ（～1Week）

  お問い合わせ時に、使用用途・要求仕様・数量・希望納期などの情報を共有いただけると、開発をスムーズに進めることができます。
  ➠ 仕様がまだ固まっていない場合や、検討段階で不明点がある場合でも、技術担当が初期検討から丁寧にサポートしますので、安心してご相談ください。




  STEP2：要件定義（仕様の整理）（1～2Week）

  使用用途・使用環境（どのような機器や装置に使用するか？屋内／屋外、防水・防塵、耐熱、耐振動の要否、適用規格など）カスタムしたい内容（電気仕様、機械仕様（操作感、押下荷重、ストローク、形状）、接続方法など）試作要否、数量・納期、その他の特殊要件など、カスタムスイッチに求められる要件を整理します。
  ➠ お客様のアイデア段階の構想を具体的な仕様へ落とし込める体制で対応します。




  STEP3：設計（図面・構造設計）（1Week）

  要件定義に基づき、3D CADによる形状・構造設計および各種解析を実施します。
  ➠ チャタリング抑制、操作部・接点構造の最適化、操作フィーリング設計、耐振動・強度・動作特性の確保を検討します。量産を見据えた設計とすることで、後工程での手戻りや品質リスクを低減します。

  • Image



    3Dモデリング

  • Image



    FEM解析

  • Image



    3Dスキャン




  STEP4：御見積作成・提出（2～4Week）

  　　　　　　　　　

  仕様確認させていただいた内容に沿って、正式なお見積を作成・提出します。
  ➠ SMKでは、見積り前に仕様や要求条件を詳細に確認し、部品構成・製造方法・材料選定などの最適化案を提示します。




  STEP5：試作（性能確認）（4～8Week）

  試作段階では、量産を想定した各種評価・試験を実施し、必要な性能を満たしているかを確認します。
  ➠ 電気試験（接触抵抗、耐電圧、絶縁抵抗）機械試験（押下荷重、ストローク、操作耐久試験）環境試験（温度サイクル、防水・防塵、耐振動）EMC評価（必要に応じて）試験結果を設計にフィードバックし、量産仕様を確定します。




  試験室



  STEP6：量産（品質保証）・納品（8～16Week）

  量産工程では、ISO9001準拠の品質管理体制のもと、安定した製造を行います。
  ➠ 最適な組立・検査工程の設計工程能力管理（Cp／Cpk）トレーサビリティ管理ラベル・梱包仕様対応取扱説明資料の作成安定供給と品質の両立を重視し、長期使用を前提とした量産・納品体制を構築します。




  目視確認

Enabling Technologies and Evaluation Environment

• Image



  3D Modeling

• Image



  FEM Analysis

• Image



  3D Scanning

•

  Testing Facilities

•

  Visual Inspection

5.SMK's Strengths Across Industries

Custom switch development requires specialized expertise and technologies that vary by industry.
Challenges differ widely across applications—for example, vibration and heat resistance and long-term durability in automotive applications, high-precision operating characteristics and reliability in medical devices, miniaturization,high-density mounting and designs that minimize the risk of unintended operation in communication and IoT applications, and waterproofing, dust resistance, and long-life design for industrial equipment.

Automotive Industry

In automotive applications, switches must withstand harsh conditions such as vibration and high temperatures. SMK supports vibration- and heat-resistant design, long-term durability for EV applications, and evaluation and testing processes compliant with automotive standards. Design solutions include structures that prevent malfunction due to vibration, stable operating feel to ensure clear input confirmation, and designs that improve assembly efficiency—ensuring both safety and mass production suitability.

Environmental Resistance and Long-Term Reliability

Communication / IoT

In communication equipment and IoT devices, compact design and reliable operation are critical. SMK provides compact switch designs suitable for limited mounting space, along with high-durability structures capable of withstanding frequent operation. Design considerations such as prevent unintended operation and consistent operating feel enhance overall system reliability.

Miniaturization and Reliability

Industrial Equipment

In factory and outdoor environments, durability against dust, water, and impact is essential. SMK’s custom switches provide waterproof and dustproof performance equivalent to IP standards, along with long-term durability under harsh conditions. Design features also improve operability with gloves and enhance maintenance efficiency, minimizing system downtime.

Waterproofing, Dust Resistance, and Durability

6.FAQ (Frequently Asked Questions on Custom Switch Development)

Q.What is the minimum order quantity (MOQ)?
A. SMD type:Reel-based (approx. 2,000–5,000 units per reel, depending on size)
Other products: Varies by specification; please contact us.
*Samples are available upon request

Q.Can I consult even if specifications are not finalized?
A.Yes. SMK supports the process from initial concept discussions through to specification definition.


Q.Is it possible to customize based on a standard switch?
A.Yes. Partial customization—such as tactile feeling, terminal shape, and waterproof performance—is available.

Q.Can you support small-lot prototyping?
A.Yes. We support everything from small-volume evaluation prototypes to mass-production validation.

Q.What level of waterproof and dustproof performance can be supported?
A.Designs can be developed to meet IP-equivalent requirements, from drip-proof to high-level waterproof structures.

Q.Can tactile feeling (actuation force / click feel) be specified?
A.Yes. Actuation force, stroke, and tactile feedback can be optimized during the design stage.

Q.Can you handle design changes during development?
A.Yes. We respond flexibly based on impact analysis, especially during the prototyping stage.

Q.Can technical consultations be conducted before quotation?
A.Yes. SMK provides consultation on structure, materials, and manufacturing methods before quotation.

Q.How is quality ensured in mass production?
A.Quality is managed in compliance with ISO 9001, including process control, inspection systems, and traceability.

Q.Can you support long-term supply and future specification changes?
A.Yes. Designs consider long-term availability and future modifications from the initial stage.

Q.Can I consult without drawings or 3D data?
A.Yes. SMK supports the entire process from requirement definition to drawing creation.

Q.What if the tactile feeling is not clearly defined?
A.Multiple operating feel options can be proposed and refined through prototyping and evaluation.

Q.Do you support overseas production and delivery?
A.Yes. Global supply is available through overseas sites and partner networks.
*For more information, please refer to SMK's Global Network page.

Q.Can you support combined solutions with other components?
A.Yes. SMK supports system-level optimization, including integration with connectors and other components.
