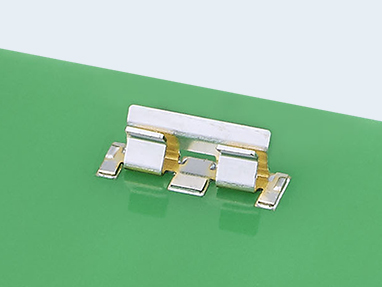

415CPB-219-50F

Shield Clips
Shield Clips

RoHS Compliant

Features	1. Half-lock structure of the shield clip and shield cover provide high retaintion force. 2. Improves work efficiency by having a large invitation area of shield clip when inserting a shield case. 3. Has a structure that prevents solder rising. 4. Country of Origin：China
Application	Automotive Equipment, Industrial Equipment, Home appliances, Amusement, Mobile devices
Height	2.0mm
Dimention	Length: 6.8mm Width: 1.8mm Height: 2.0mm
Contact Resistance	30mΩ以下
Operating Temperature Range	-40℃ to ＋125℃
Packaging	Embossed Taping (6000 pcs / reel）

Contact	Cu Alloy, Au Plating

--Result(s)

Parts No.	Contact	Height	Operating Height	Contact Pressure

${item.title}	${item.field_seten}	${item.field_hontai_takasa}	${item.field_shiyo_takasa}	${item.field_seten_atsu}
