415CPB-238-50F

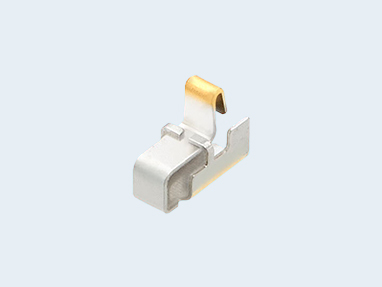

ET-20
Earth Terminal

RoHS Compliant

Features	1. The earth terminals are of a low contact pressure type with electro-conductivity coated shell molds. 2. Designed for SMT operations, supply on embossed tapemakes it possible to mount the terminals automatically. 3. Low contact pressure allow for multiple use of the terminals. 4. Compact and light-weight equipment design can be realized with the terminals. 5. Custom needs are available. 6. Country of Origin：China
Application	Automotive Equipment, Industrial Equipment, Home appliances, Amusement, Mobile devices
Contact	Top
Height	2.5mm
Operating Height	1.5～2.3mm
Dimention	Length: 3.0mm Width: 1.5mm Height: 2.5mm
Contact Pressure	0.25～1.90N
Rated Voltage AC/DC	5V DC, 0.5A
Contact Resistance	50mΩ Max.
Operating Temperature Range	-40℃ to +85℃
Packaging	Embossed Taping (5000 pcs / reel）

Contact	Cu Alloy, Au Plating
