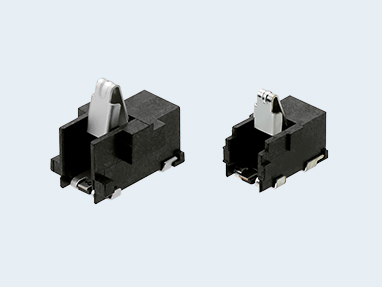

ET-M
Earth Terminals
RoHS Compliant
Features
1. Increases design flexibility by having wide working range.
2. Lowers risk of solder crack due to original structure which stress of the spring does not reach the soldered part directly.
3. Housing prevents contact deformation during assembly and maintains robustness.
4. Country of Origin：Japan
Specification
- Contact
- Top
- Height
- 5.0～6.0mm(Depends on the figure number. For details, please refer to product detail page.)
- Operating Height
- 3.2～5.5mm (Depends on the figure number. For details, please refer to product detail page.)
- Contact Pressure
- 0.20～1.30N (Depends on the figure number. For details, please refer to product detail page.)
- Rated Voltage AC/DC
- 10V AC/DC, 3A
- Contact Resistance
- 30mΩ Max.
- Operating Temperature Range
- －40℃ to ＋85℃
Material and Plating
- Contact
- Cu Alloy, Sn Plating
- Housing
- Thermoplastic Resin
Application
Automotive Equipment, Industrial Equipment, Home appliances, Amusement, Mobile devices
No applicable products
ET-M Product List
--Result(s)
| Parts No. |
|
|
|
|
||
|---|---|---|---|---|---|---|
| ${item.field_seten} | ${item.field_hontai_takasa} | ${item.field_shiyo_takasa} | ${item.field_seten_atsu} | |||
