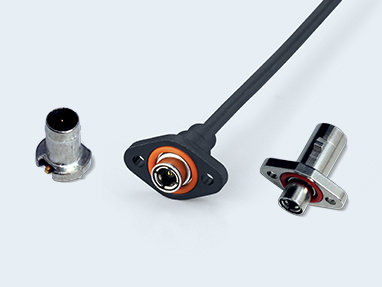

CM-S
Coaxial Connectors for Automotive Camera Module (Small Type)
RoHS Compliant
Features
1. This is a connector for high pixel type automotive camera modules.
2. Covers a wide operating frequency range from DC to 3GHz, and achieves excellent high frequency performance.
3. Waterproofing : IPX7 (Mating waterproof)
4. Straight and right angle types of plugs are available.
5. Floating Structure with matimg alignment：±0.25mm 6. Country of Origin：China
・For details on conversion adapters, please refer to the PDF catalog.
Specification
- Type
- External Connector for Automotive device
- Frequency Range
- DC to 3GHz
- Nominal Impedance
- 50Ω
- V.S.W.R.
- 1.3max.(DC to 1GHz), 1.5max.(1 to 3GHz)
- Insertion Loss
- 1.3dBmax.(DC to 3GHz)
- Mounting Height
- 6.25mm､5.74mm（Please refer to the page of each part number.）
- Waterproof / Non-waterproof
- Waterproof (Interlocking waterproof)
- Mounting Direction
- Straight
- Rated Voltage AC/DC
- 250V AC, 1A
- Contact Resistance
- 20mΩ max.
- Operating Temperature Range
- －40℃ to ＋105℃
Material and Plating
- Terminal
- Cu Alloy, Au Plating
Application
Automotive Camera
No applicable products
