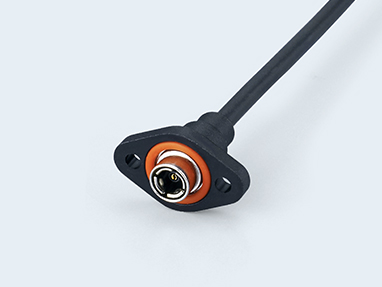

CRS9001-3201F

CM-S
Coaxial Connectors for Automotive Camera Module (Small Type)

RoHS Compliant

Features	1. This is a connector for high pixel type automotive camera modules. 2. Covers a wide operating frequency range from DC to 3GHz, and achieves excellent high frequency performance. 3. Waterproofing : IPX7 (Mating waterproof) 4. Straight and right angle types of plugs are available. 5. Floating Structure with matimg alignment：±0.25mm 6. Country of Origin：China ・For details on conversion adapters, please refer to the PDF catalog.
Application	Automotive Camera
Type	External Connector for Automotive device
Plug/Receptacle	Plug
Frequency Range	DC to 3GHz
Nominal Impedance	50Ω
V.S.W.R.	1.3max.(DC to 1GHz), 1.5max.(1 to 3GHz)
Insertion Loss	1.3dBmax. (DC to 3GHz)
Dimention	Length: 15.2mm (Excluding cable) Width: 19.6mm
Waterproof / Non-waterproof	Waterproof (Mating waterproof)
Applicable Cable	1.5D
Applicable Cable Diameter	Φ3mm
Rated Voltage AC/DC	250V AC, 1.5A
Contact Resistance	20mΩ Max.
Operating Temperature Range	－40℃ to ＋105℃
Mating Cycle Life	1000 cycles
Packaging	Bulk

Terminal	Cu Alloy, Au Plating
