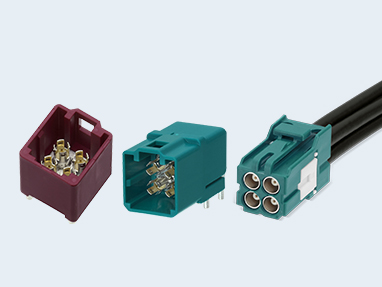

MH-1
Multi-Coaxial Connectors
Features
1. Great multi-coaxial connector for automotive cameras and each antenna connection.
2. Four pin version is available.
3. Saves up PCB space up to 70% compared to SMK’s 4x FAKRA
4. Covers a wide operating frequency range from DC to 6 GHz, and achieves excellent high frequency performance.
5. The compatible cable is 1.5D coaxial cable (outer diameter φ3.0mm).
6. Greatly enhanced noise resistant performance due to SMK original structure.
7. Seven key codes are available in different colors for different connection.
8. Receptacle supports automatic mounting with embossed tape.
9. Country of Origin：China
･Part No. XX is changed by key codes and color codes. Please contact us for more information.
Specification
- Type
- External Connector for Automotive device
- Frequency Range
- DC to 6GHz
- Nominal Impedance
- 50Ω
- V.S.W.R.
- 1.5max. (DC to 6GHz)
- Insertion Loss
- 0.4dB max.(DC to 3GHz) , 0.6dB max.(3 to 6GHz)
- Mounting Height
- Vertical Type 14mm (Receptacle), Right Angle Type 13.65mm (Receptacle)
- Waterproof / Non-waterproof
- Non-waterproof
- Mounting Style
- Reflow DIP
- Mounting Direction
- Vertical, Right Angle
- Rated Voltage AC/DC
- 60V AC/DC, 1A
- Contact Resistance
- 20mΩ max.
- Operating Temperature Range
- －40℃ to ＋105℃
Material and Plating
- Housing
- Thermoplastic Resin
- Terminal
- Cu Alloy, Au Plating
Application
Automotive Equipment, Industrial Equipment
