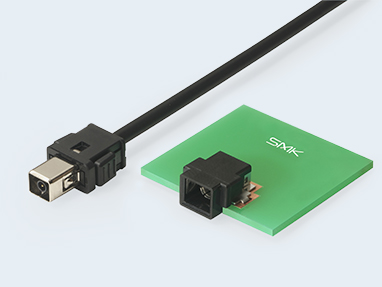

TC-15
Rectangular Coaxial Connectors
RoHS Compliant
Features
1. High mating retention force of the plug and receptacle with a metal locking type.
2. An automatic mountable connector with the receptacle of an edge mounting type and its profile as low as 4.5mm height X 12mm width X 11mm depth.
3. Country of Origin：Japan
For Converting Adapter：CRS1001-1901F, CRC1001-3501F,
Please refer to the catalog pdf.
2. An automatic mountable connector with the receptacle of an edge mounting type and its profile as low as 4.5mm height X 12mm width X 11mm depth.
3. Country of Origin：Japan
For Converting Adapter：CRS1001-1901F, CRC1001-3501F,
Please refer to the catalog pdf.
Specification
- Type
- External Connector
- Frequency Range
- DC to 6GHz , DC to 800MHz
- Nominal Impedance
- 50Ω , 75Ω
- V.S.W.R.
- 1.5max.
- Insertion Loss
- 2.5dB max.(5.8GHz)(include the cable loss), 1.2dB max.(800MHz)(include the cable loss)
- Mounting Height
- 4.5mm (Receptacle)
- Waterproof / Non-waterproof
- Non-waterproof
- Mounting Style
- SMT
- Mounting Direction
- Right Angle
- Rated Voltage AC/DC
- 250V AC r.m.s., 1A
- Contact Resistance
- 20mΩ max.
- Operating Temperature Range
- －40℃ to ＋105℃
Material and Plating
- Housing
- Thermoplastic Resin
- Terminal
- Cu Alloy, Au Plating
Application
Automotive Equipment
